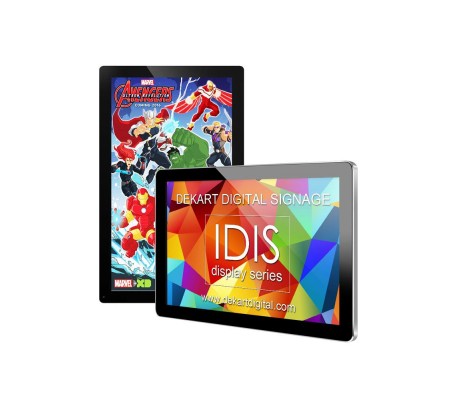

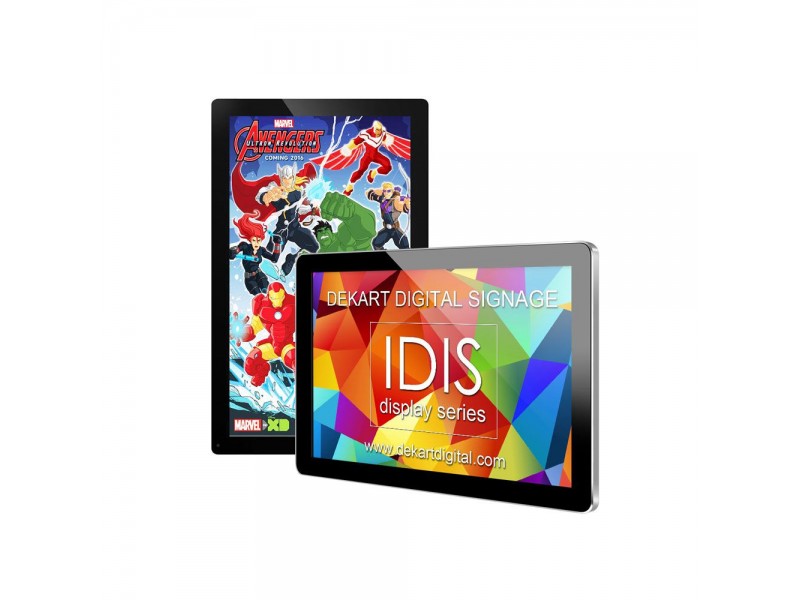

Digital digital signage display DILUX-3201-BLK-SLV allows you to quickly and effectively display advertising information to the target audience due to the high brightness and contrast of the 32 inch screen. Digital Commercial Display DILUX -320 has a built-in digital signage media player with support of slides and GIF/JPG/PNG images, AVI/MPG/MOV Full HD videos, as well as FLAC and MP3 audio. It is possible to install network advertising player to remotely manage multiple displays via LAN or the Internet. DILUXs can be equipped with mobile sensors with high sensitivity, or convenient control keys by request. You can enjoy photo, video, audio directly from a memory card SD/SDHC, and USB with a built-in digital display ad player (supports SD card and USB memory up to 64 gigabytes), and a loud built-in speakers. You can use USB port to connect the most diverse content from external devices. This digital signage display can be equipped with VGA, HDMI, DisplayPort display data from external devices – advertising media player or Windows/Android/Linux PC. Modern DILUX is mounted with VESA200 or VESA100 standart mounting for TV. Scheduled operation is possible when composing a playlist using a special software included.
We produce LCD Commercial Displays with screens from 10 to 90 inches, call or email us now to know the price and delivery time.

Main functions of this digital display
Auto-play video in a 24x7x365 repetitive mode. Auto continue playing after power failure. Display of Full HD video and graphics vertically and horizontally. Timer on and off, show current time and the logo in the corner of the screen, scrolling text, optional remote management via the Internet... See the full feature list...

The main features of the series DILUX
Vandal-proof metal housing. Vertical and horizontal screen orientation. Suited to premises and transport. Equipped with toughened glass to protect the screen. Built-in ad player with lock. Built-in speakers... See full features list...

Available options
Remote control via the Internet. Built-in computer with Windows, Linux, Android. Touch screen. Motion sensor, buttons, RS232 port. Internet LAN, 3G, WiFI... See the full list of available options...

Device interfaces
The default is SD flash card, CF flash card, USB flash. OPTIONS: AV input(CVBS),HDMI video + audio, Optional DisplayPort, VGA / RGB video, Audio input or output, Antenna (coaxial cable), Internet – Wire RJ45, WiFi, Internet – 3G / 4G... See the full list of interfaces available...

Specification DILUX-3201-BLK-SLV

Application Bus display, Transport advertising screen, Indoor Advertising monitor, LCD advertising player, Digital signage, Standalone LCD ad player, Advertising display
Housing material Metal
Color Black, White, Silver, Golden (other by request)
Power input 9-30V for transport, 100-300V for indoor
Power consumption 25W
Operating System AdPlayer / Windows / Linux / Android
OSD language English, Chinese, Japanese, Spanish, Deutsche, French, Portuguese, Italian, Russian...
Speakers 2x4W
Internal memory No
Optional internal memory 2-32GB
Storage temperature -35...+45C (-15...113F)
Operation temperature -25...+45C (-13...113F)
Flash memory support SD, SDHC, MMC/MS, USB flash
Flash memory anti-theft Cardreader door with lock
Mount method Wall, Сeiling, Handrail, Stand, VESA75/100 Mounting
Accessories Mounting kit, Remote Control, Manual
May also need SD/SDHC/MMC/MS or USB flash
Screen size 32 inch
Aspect ratio 16:9
Available sizes 22, 32, 42, 55, 65 inch
Screen protection Tempered glass or Acrylic glass, 1-6 mm ( 3/64 - 1/4 inch)
Screen type LCD
Optional screen type LED, IPS
Resolution 1920x1080
View angle H/V LCD:85/85/85/65 LED:88/88/88/88
Brightness 350 cd/m2
Contrast ratio 700:1
Supported colours 16.7 million
Response time 5 ms
Media support
Video files AVI, MPG, VOB, MPEG-1, MPEG-2, MPEG-4, H264, Matroska MKV (FullHD)
Picture files JPG, GIF, BMP, PNG
Audio files MP3, WMA, OGG, WAV, AAC, FLAC
Size and Weight
Product size (mm) by request
Product weight (kg) by request
Carton size (mm) by request
Carton G.W. (kg) by request
Packing details by request
