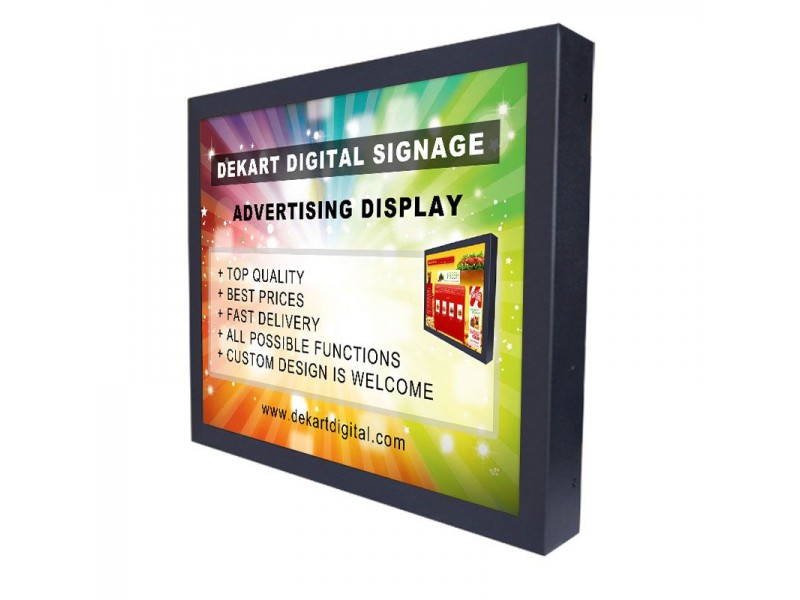

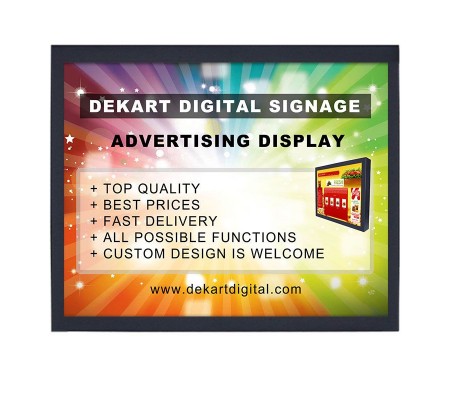

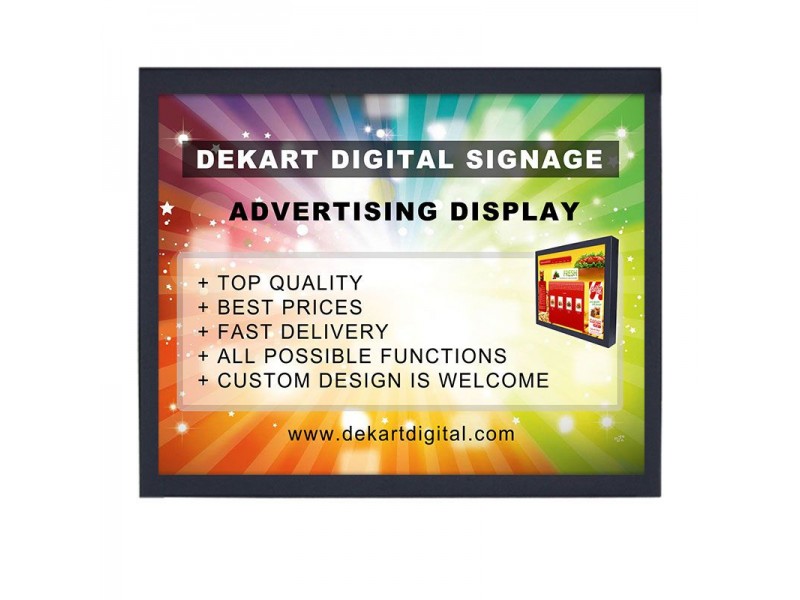

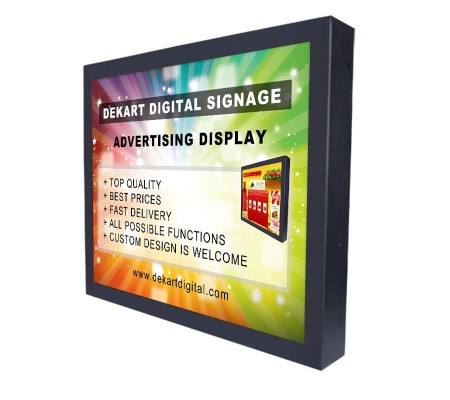

17 inch Advertising LCD ad player DIPANEL-1700-BLK automatically plays the video clips and slide shows on a schedule. It is easily installed on a wall, desks and shelves near shopping centers and in stores. This 17 inch digital signage display is great for transport as advertising or information display for transit advertising like Route-TV, or Transport-TV.
Built-in plug and play advertising player starts showing the video clips automatically when the voltage is supplied. Unlike many digital signage screens, no any buttons on frame required, the screen of DIPANEL-1700-BLK start to show video automatically. Video advertising effectively attracts and retain more buyers in the market place and attract customers from public transport. Use this display for
Digital signage advertising display on the shelf of the store or near the showcase
Vandal-proof  advertising display for bus and taxi
Information screen for trolleybuses and trams
Video monitor or TV for and trains
The display on the POS monitor or rack with the goods
Advertising screen for taxi. Can be placed between the front seats
Commercial display in the beauty shop on the shelf or on the mirror
Promotional display in the window of the pharmacy or cosmetics shop
Commercial display or information display near the Elevator
It is possible to install digital signage display in bus or railroad transport, on the ceiling and walls, indoors, on the bus, in taxis and trains. Built-in ad player provides continuous playback of videos on a circle, or slideshow photo, video and audio with different settings, including intervals of 3 s,5 s, 8 s, 15 s, 20 s, 25 s, 30 s, 40 s, 50s. The monitor has a built-in media player for displaying advertising and informational messages. Remote control advertising is possible of you order this display with professional digital signage player with Internet management.
DIPANEL-1700-BLK Digital advertising monitor with high resolution display provides all the benefits of advertising with modern electronic content. Some of the features of this promotional media complex are: video playback, music, slideshow images, adjustable transition effects and built-in calendar. High resolution 1024x768 screen provides a stable display for media advertising, which will play on a loop for continuous playback of TV advertising during the working day, or even around the clock 24/7/365. Digital signage commercial LCD display with player has universal mount with several mounting options including horizontally on the countertop, and on the wall. When installed vertically, it can be used as a promotional poster or an interactive display whiteboard. Buy professional ad monitor DIPANEL-1700-BLK and start earn extra income today!

Basic functions of LCD ad player

Auto start of displaying video at power-up, no need to turn on manually. Automatic on and off on a schedule. Support Full HD video, image files, MP3, lossless audio. Automatic playlist repeat around the clock all year round. Automatic restart in case of power failure. Scroll text with the color setting and size of letters and the substrate, the Update of information on the SD flash card c USB flash, view Statistics of mediaflow, Optional remote control via WIFI, 3G, 4G Internet. You can update your playlist, media, schedule. Watch full list of this model functions...

Main features of DIPANEL Digital Signage Display

Rugged vandal-proof metal housing with simple design. Can be installed on the wall, the ceiling, on the Desk or on a shelf of a store. Can be used as a monitor for bus, taxi, metro cars, and train stations. Equipped with transparent screen protection made of tempered glass or plastic. Flash card, and USB flash is lockable to protect against theft. Multilingual settings menu. Built-in speakers 2x2W or 2x4W, see the full list of features...

Options of DIPANEL display series

  • Option: Remote display management via LAN/Internet remote updating of media files and playlists
  • Option: Built-in Android or Linux PC
  • Option: Built-in Windows PC
  • Option: Touch screen (touchscreen)
  • Option: Motion sensor
  • Option: Hot and cold conditions version
  • Option: Ultrabright screen for visibility in sunlight
  • Option: I/O Interface RS232
  • Option: Built-in memory
  • Option: Internet WiFi
  • Option: Internet – 3G / 4G
  • See the full list of options...


  • SD flash card
  • CF flash card
  • USB flash
  • Option: AV input(CVBS)
  • Option: HDMI video + audio
  • Option: DisplayPort
  • Option: VGA / RGB video
  • Option: Audio input or output
  • Option: Antenna (coaxial cable)
  • Option: Internet – Wire RJ45
  • Option: Internet WiFi
  • Option: Internet – 3G / 4G
  • See the full list of interfaces...

Specification DIPANEL-1700-BLK

Application Bus display, Transport advertising screen, Indoor Advertising monitor, LCD advertising player, Digital signage, Standalone LCD ad player, Advertising display
Housing material Metal
Color Black, White (other by request)
Power input 9-30V for transport, 100-300V for indoor
Power consumption 18W
Operating System AdPlayer / Windows / Linux / Android
OSD language English, Chinese, Japanese, Spanish, Deutsche, French, Portuguese, Italian, Russian ...
Speakers 2x4W
Internal memory No
Optional internal memory 2-32GB
Storage temperature -35...+45C (-15...113F)
Operation temperature -25...+45C (-13...113F)
Flash memory support SD, SDHC, MMC/MS, USB flash

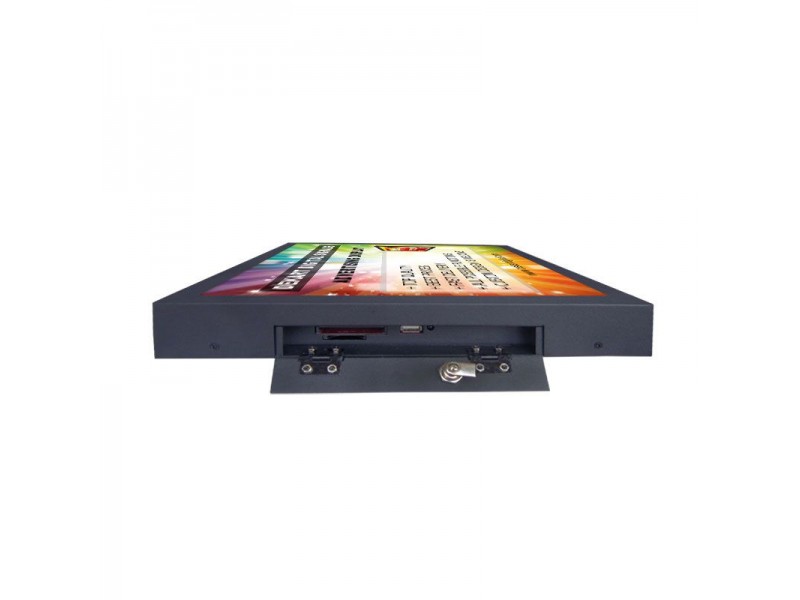

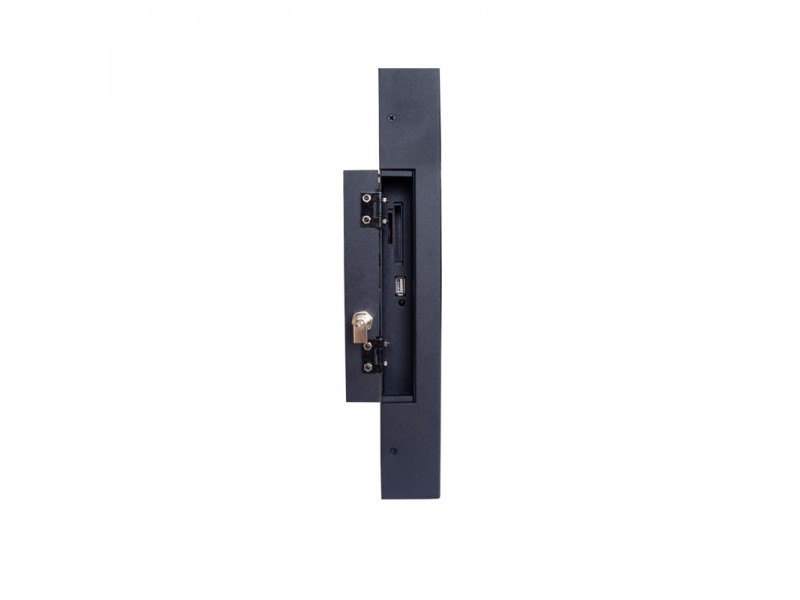

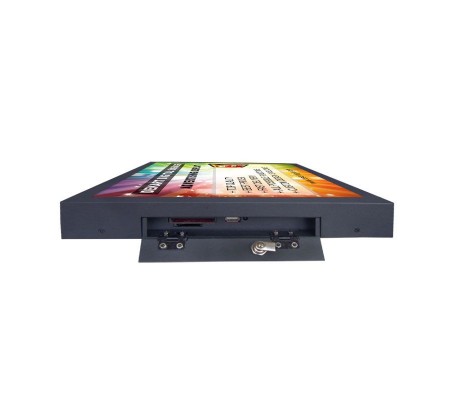

Flash memory anti-theft Cardreader door with lock

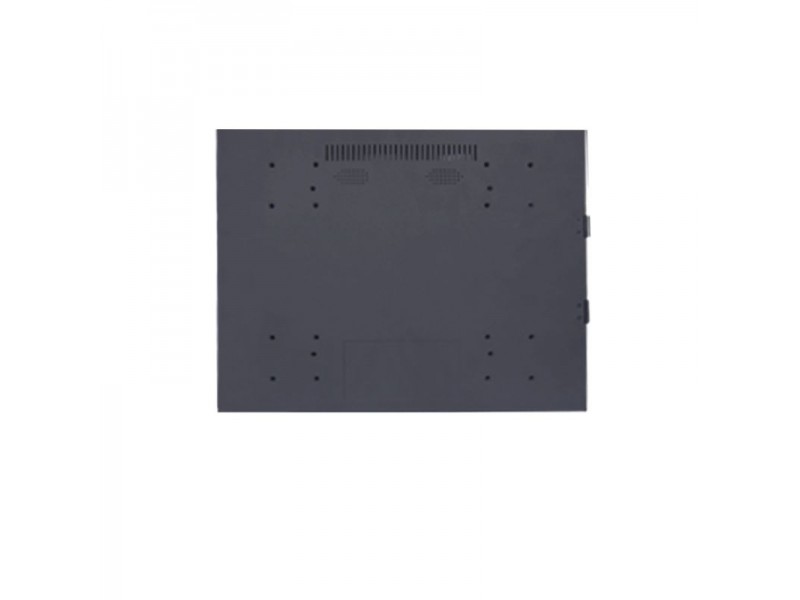

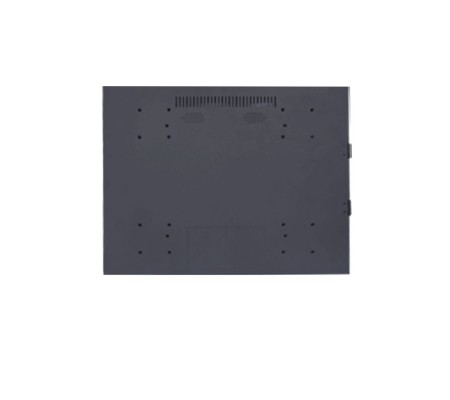

Mount method Wall, Сeiling, Handrail, Stand, VESA75/100 Mounting
Accessories Mounting kit, Remote Control, Manual
May also need SD/SDHC/MMC/MS or USB flash
Screen size 17 inch
Aspect ratio 4:3
Available sizes 10, 12, 15, 17, 19, 22, 24, 32, 42, 55, 65 ,70 inch
Screen protection Tempered glass or Acrylic glass, 1-6 mm ( 3/64 - 1/4 inch)
Screen type LCD
Optional screen type LED, IPS
Resolution 1024x768
View angle H/V LCD:85/85/85/65 LED:88/88/88/88
Brightness 300 cd/m2
Contrast ratio 1000:1
Supported colours 16.7 million
Response time 4 ms
Media support
Video files AVI, MPG, VOB, MPEG-1, MPEG-2, MPEG-4, H264, Matroska MKV (FullHD)
Picture files JPG, GIF, BMP, PNG
Audio files MP3, WMA, OGG, WAV, AAC, FLAC
Size and Weight
Product size (mm) by request
Product weight (kg) by request
Carton size (mm) by request
Carton G.W. (kg) by request
Packing details by request
