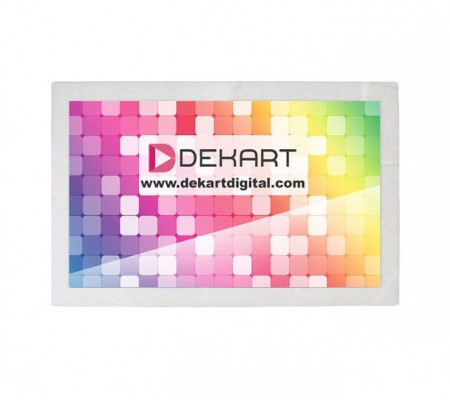

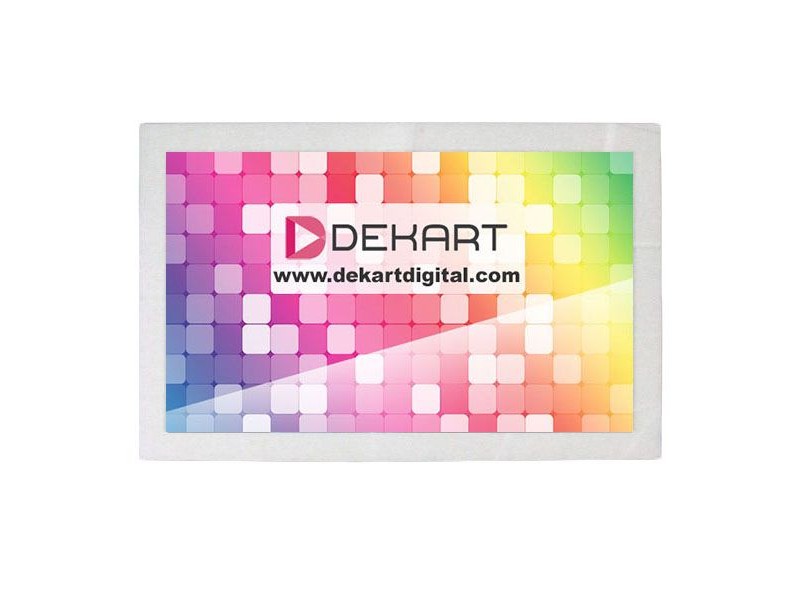

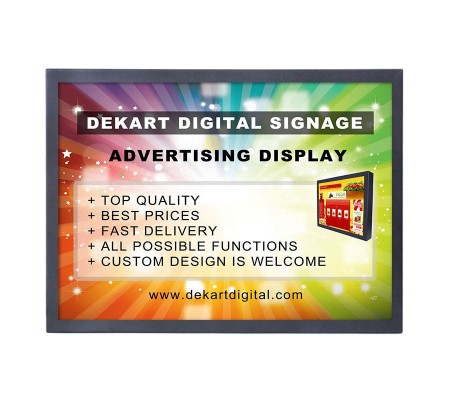

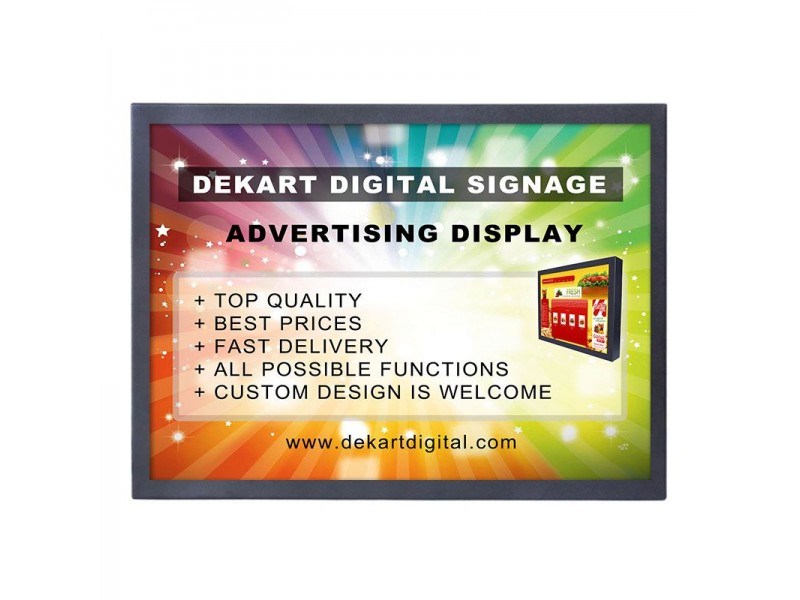

Widescreen vandal-proof digital signage LCD player for displaying video and graphical slides in horizontal and vertical orientation. Compatible with SD / SDHC, MMC, and USB external memory. DIPANEL-1850-BLK commercial display have built-in Full HD media player, on/off timer, save statistics of impressions, adjustable transitions of slideshow – all features you need for digital signage in one device. Advertising display own resolution is 1366x768 pixels.
Commercial LCD monitor for advertising with high resolution displays photos, videos and audio files automatically, on a schedule or 24/7. Remote management via the Internet, LAN, wifi or 3G is available with optional network advertising media player. DIPANEL-1850-BLK is commonly used as:
Display for Digital signage advertising in shops and waiting rooms
Information monitor buses of small and large capacity
A video screen for trolleybuses and trams
TV for trains
Advertising monitor for elevators and hallways of office centers
Screen for POS materials
HoReCa advertising LCD player
The schedule screen performances
Electronic pointer
You can install this display as indoor digital signage system or as transit LCD media player for bus, taxi, and video screen in trolley and the cars of electric trains and subways. DIPANEL-1850-BLK Information LCD screen for Digital Signage with high resolution shows slide-shows, videos, and music files with Full HD image quality 1920x1080 pixels. Different types of multimedia files can be read by the device from memory cards SD / SDHC, MMC, and USB, and also be updated via the Internet, if the monitor is equipped with distant control function (option). This LCD display for advertising has several special functions, including the collection of statistics (LOG-File), video playback from where it stopped, displaying a slideshow, loop play and auto on and off timer. DIPANEL-1850-BLK model is often installed as an advertising display in buses, trolley buses, and trains.



Basic functions of LCD ad player

Auto start of displaying video at power-up, no need to turn on manually. Automatic on and off on a schedule. Support Full HD video, image files, MP3, lossless audio. Automatic playlist repeat around the clock all year round. Automatic restart in case of power failure. Scroll text with the color setting and size of letters and the substrate, the Update of information on the SD flash card c USB flash, view Statistics of mediaflow, Optional remote control via WIFI, 3G, 4G Internet. You can update your playlist, media, schedule. Watch full list of this model functions...


Main features of DIPANEL Digital Signage Display

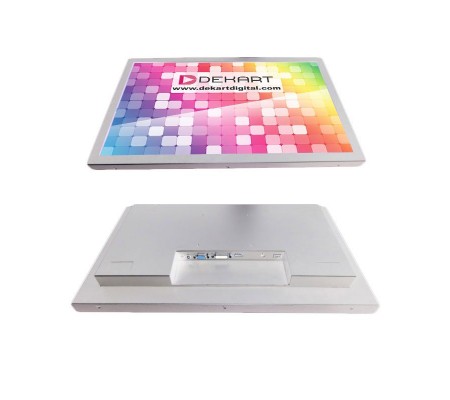

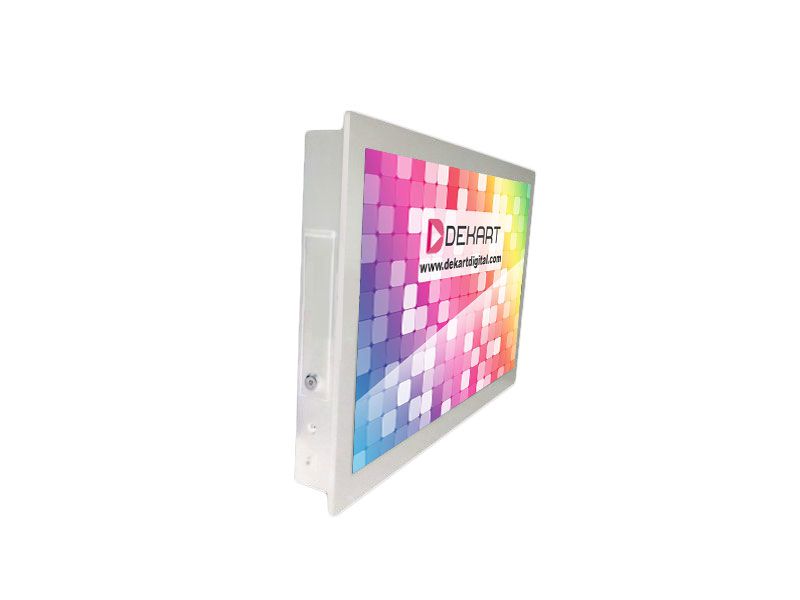

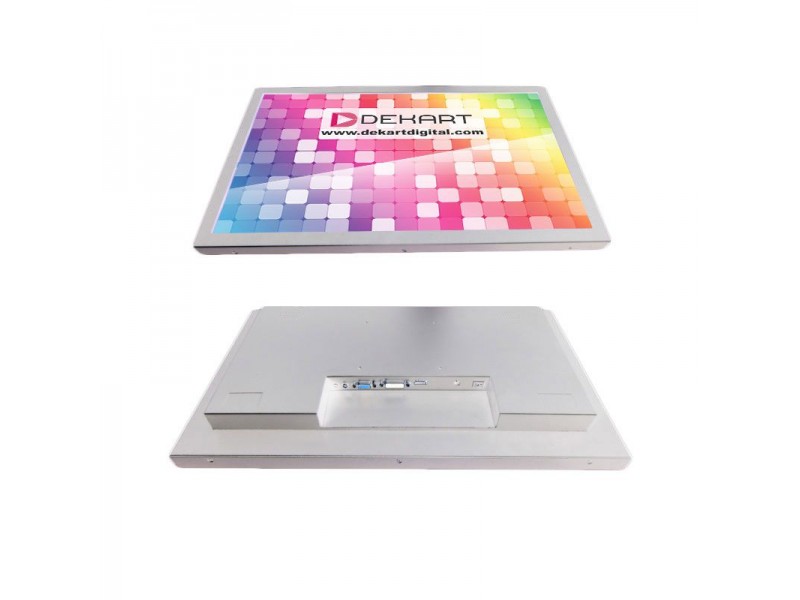

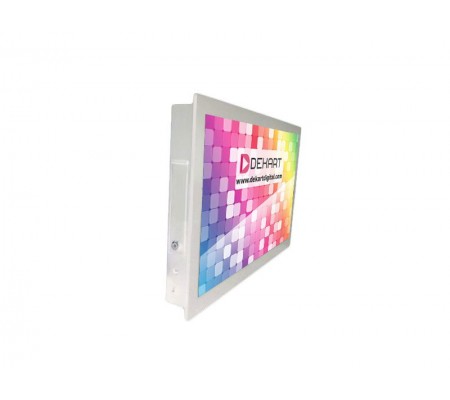

Rugged vandal-proof metal housing with simple design. Can be installed on the wall, the ceiling, on the Desk or on a shelf of a store. Can be used as a monitor for bus, taxi, metro cars, and train stations. Equipped with transparent screen protection made of tempered glass or plastic. Flash card, and USB flash is lockable to protect against theft. Multilingual settings menu. Built-in speakers 2x2W or 2x4W, see the full list of features...


Options of DIPANEL display series

  • Option: Remote display management via LAN/Internet remote updating of media files and playlists
  • Option: Built-in Android or Linux PC
  • Option: Built-in Windows PC
  • Option: Touch screen (touchscreen)
  • Option: Motion sensor
  • Option: Hot and cold conditions version
  • Option: Ultrabright screen for visibility in sunlight
  • Option: I/O Interface RS232
  • Option: Built-in memory
  • Option: Internet WiFi
  • Option: Internet – 3G / 4G
  • See the full list of options...



Interfaces:

  • SD flash card
  • CF flash card
  • USB flash
  • Option: AV input(CVBS)
  • Option: HDMI video + audio
  • Option: DisplayPort
  • Option: VGA / RGB video
  • Option: Audio input or output
  • Option: Antenna (coaxial cable)
  • Option: Internet – Wire RJ45
  • Option: Internet WiFi
  • Option: Internet – 3G / 4G
  • See the full list of interfaces...

Specification DIPANEL-1850-BLK

General
Application Bus display, Transport advertising screen, Indoor Advertising monitor, LCD advertising player, Digital signage, Standalone LCD ad player, Advertising display
Housing material Metal
Color Black, White (other by request)
Power input 9-30V for transport, 100-300V for indoor
Power consumption 20W
Operating System AdPlayer / Windows / Linux / Android
OSD language English, Chinese, Japanese, Spanish, Deutsche, French, Portuguese, Italian, Russian ...
Speakers 2x4W
Internal memory No
Optional internal memory 2-32GB
Storage temperature -35...+45C (-15...113F)
Operation temperature -25...+45C (-13...113F)
Flash memory support SD, SDHC, MMC/MS, USB flash

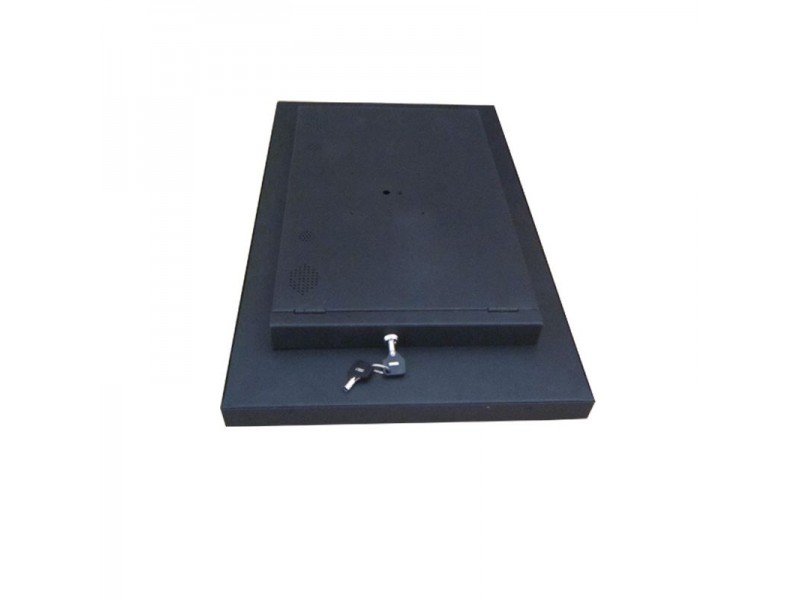

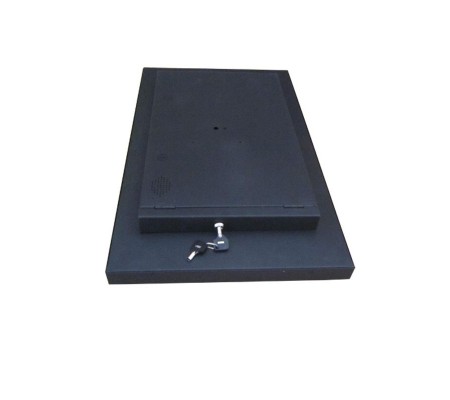

Flash memory anti-theft Cardreader door with lock
Mount method Wall, Сeiling, Handrail, Stand, VESA75/100 Mounting
Accessories Mounting kit, Remote Control, Manual
May also need SD/SDHC/MMC/MS or USB flash
Screen
Screen size 18.5 inch
Aspect ratio 16:9
Available sizes 10, 12, 15, 17, 19, 22, 24, 32, 42, 55, 65 ,70 inch
Screen protection Tempered glass or Acrylic glass, 1-6 mm ( 3/64 - 1/4 inch)
Screen type LCD
Optional screen type LED, IPS
Resolution 1366x768
View angle H/V LCD:85/85/85/65 LED:88/88/88/88
Brightness 250 cd/m2
Contrast ratio 1000:1
Supported colours 16.7 million
Response time 3 ms
Media support
Video files AVI, MPG, VOB, MPEG-1, MPEG-2, MPEG-4, H264, Matroska MKV (FullHD)
Picture files JPG, GIF, BMP, PNG
Audio files MP3, WMA, OGG, WAV, AAC, FLAC
Size and Weight
Product size (mm) by request
Product weight (kg) by request
Carton size (mm) by request
Carton G.W. (kg) by request
Packing details by request
