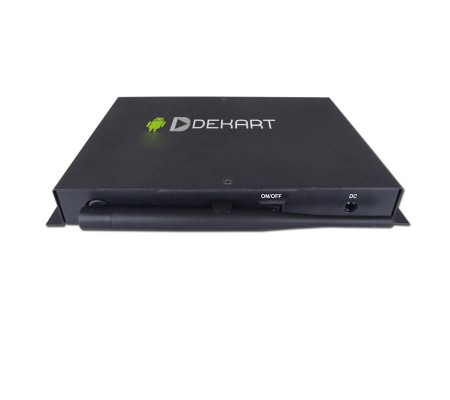

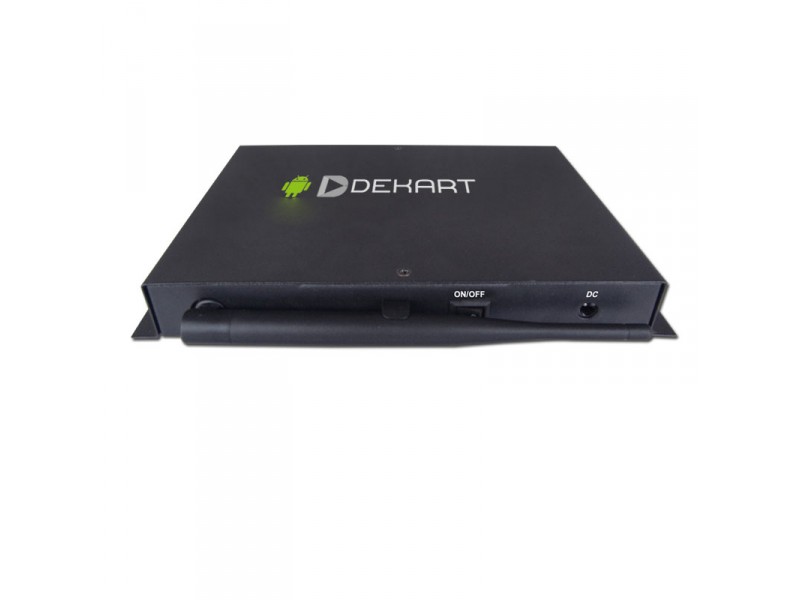

DSPLAYER-101AHD High definition Android network advertising player for Digital Signage designed for use in advertising and information systems with Full HD video, JPG PNG graphics, SMIL, HTML5 and split the screen into zones (multi-zone). It is applicable in most Digital Signage systems for advertising and information, and often replace conventional advertising player without a network interface.

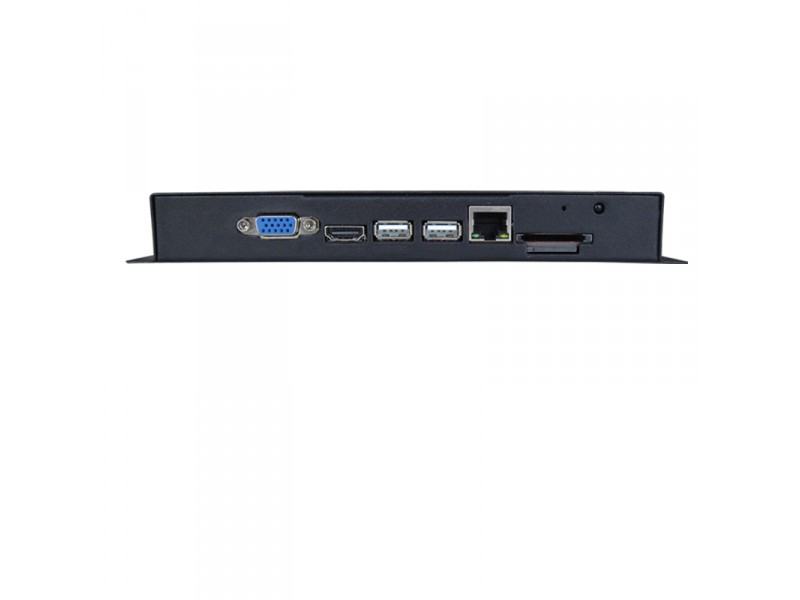

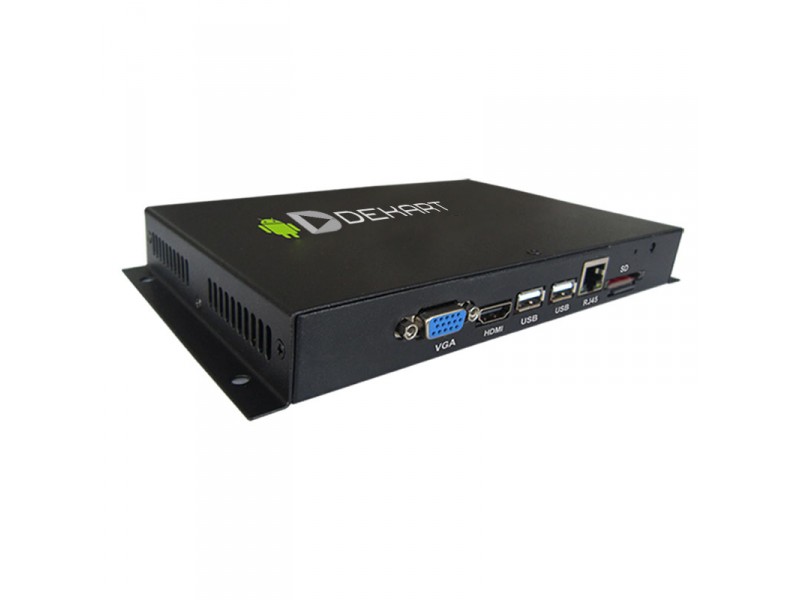

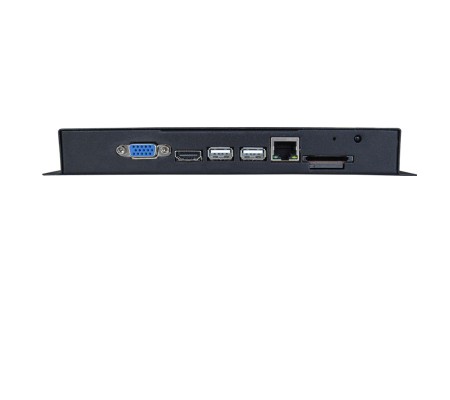

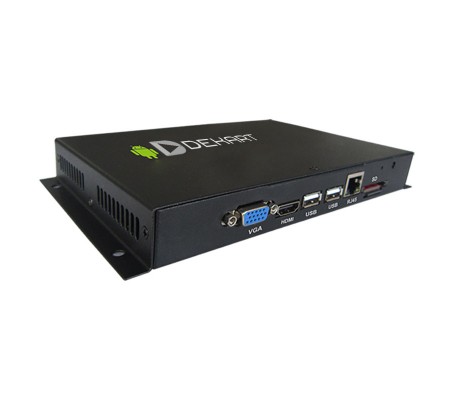

DSPLAYER-101AHD Android Network advertising media player support Full HD video format, This allows to use it with graphics and video advertising monitor up to 1080p. The advertising player is equipped with video interfaces HDMI, VGA to connect to the advertising monitors, and a combined analog output AV In the basic configuration.
You can use expansion slot for SD and USB Flash to increase the internal memory in DSPLAYER-101AHD. Additional mobility and versatility of the player is provided with Android software compatible with shells from several manufacturers.
Built-in watchdog timer performs a control operation of the media player and demonstration of content after disconnection of the supply voltage, network failures, or other deviations from the standard operating mode.

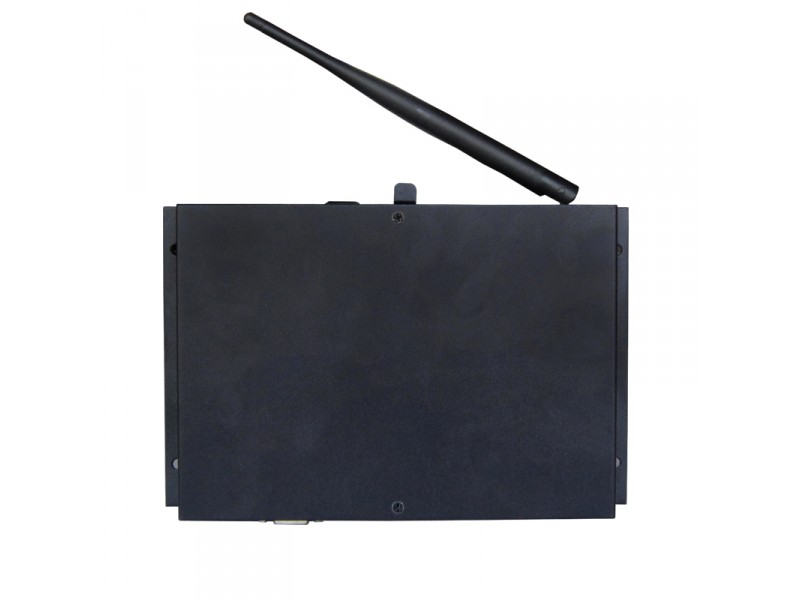

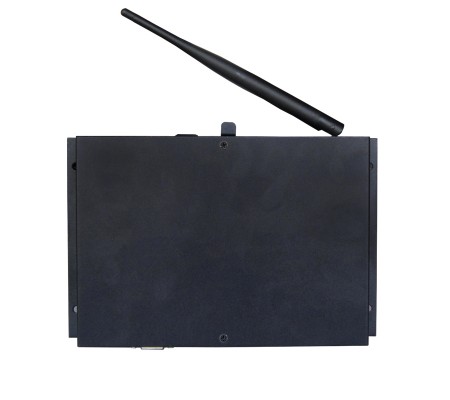

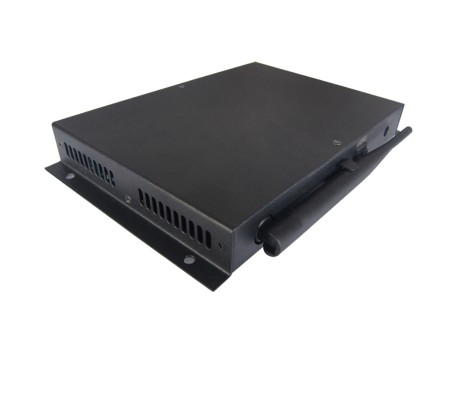

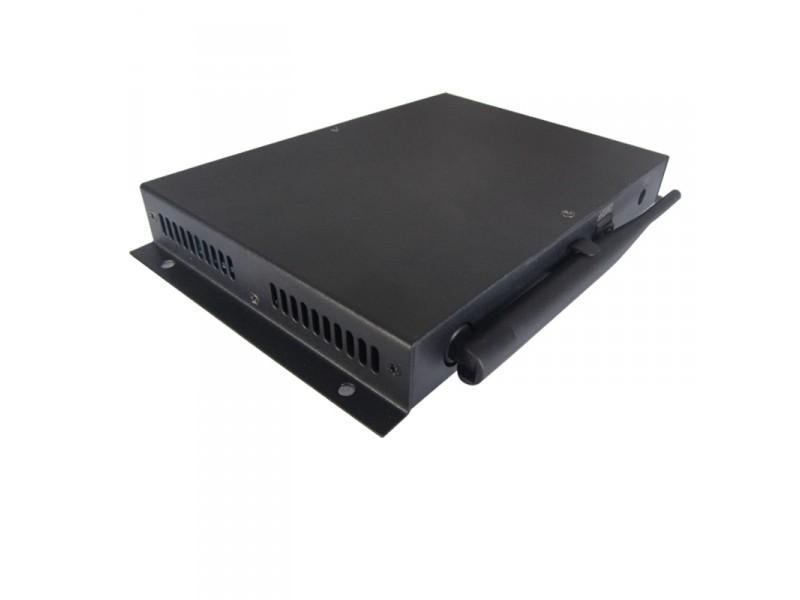

Metal housing effectively performs the function of a heat sink and protects the device from dust and moisture. Network advertising player can be and securely fixed in place using wall mounts.
Full HD Digital signage player works on regular Android operating system, which already includes the function of remote control, advertising player, split-screen on the field (multi-zone playback) and content management: videos, images, vector graphics, html5, RSS feeds (running text strings), animation, etc.
DSPLAYER-101AHD is perfect solution for most digital signage projects, buy it now and you will be able to realize any promotional informational idea!

DS Player functions list

  • Remote Windows-based management via local area network or Internet (+ Wi-fi & 4G optionally)
  • Auto start playing when power connected, auto return to playing after power reset
  • Internal on/off timer
  • Loop play mode 24x7 (Endless auto-repeat)
  • Multizone screen to display video, graphics and text simultaneously
  • Time and date, company logo in the corner of screen
  • Scrolling text, RSS feed text
  • Volume timer
  • USB update
  • Log file (statistics)

Digital signage player features

  • Metal dust-proof housing
  • No any buttons on device
  • Low weight
  • No cooler and other moving parts
  • Anti-theft protection against memory card theft
  • Multi-language OSD menu


  • USB flash
  • SD, SDHC flash card
  • CF flash card
  • VGA out
  • HDMI out
  • AV out


  • Buttons to choose video file
  • Wi-Fi
  • 4G

Specification DSPLAYER-101AHD

Application Network Advertising player, Digital signage player. CPU: Allwinner A20 ARM Double Cortex A7 2GHz GPU: 2D/3D/OpenGL ES2.0(AMD Z430)/OpenVG1.1(AMDz160)@27M Tri/sec O/S: Android 4.2 RAM: 1GB NAND FLASH: 8GB
Housing material Metal
Network interface LAN RJ45, Wi-Fi, Option: 3G, 4G
Video output HDMI, VGA, AV (CVBS)
Color Black (other by request)
Power input 110-250V / 5V
Power consumption 4W
OSD language English, Chinese, Japanese, Spanish, Deutsche, French, Portuguese, Italian, Russian ...
Internal memory 1Gb RAM, 8Gb ROM
Optional internal memory 2-32GB
Storage temperature -5...+45C (23...113F)
Operation temperature 0...+45C (32...113F)
Flash memory support SD, USB flash
Mount method Double sided tape, Plastic coupler, Bracket
Accessories Power supply, Remote Control, AV Cable, CD, Manual
Media support
Video files AVI, MPG, VOB, MPEG-1, MPEG-2, MPEG-4, MKV, M2TS, H264 (FullHD)
Picture files JPG, GIF, PNG
Audio files MP3, WMA, WAV, FLAC
Size and Weight
Product size (mm) by request
Product weight (kg) by request
Carton size (mm) by request
Carton G.W. (kg) by request
Packing details by request
